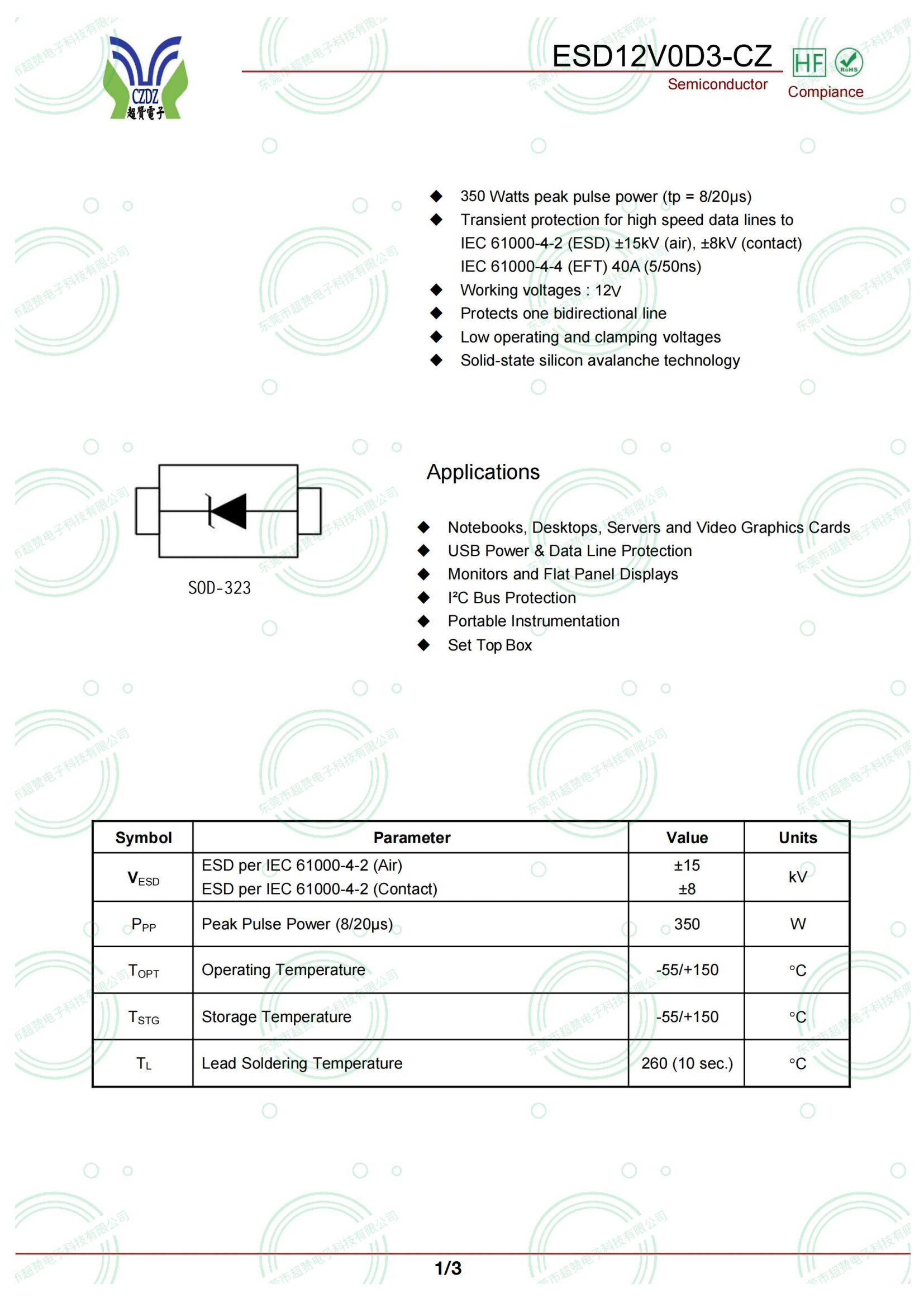

ESD二極管：ESD12VD3 12V SOD-323

?350 Watts peak pulse power (tp = 8/20μs)

?Transient protection for high speed data lines to

     IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)

     IEC 61000-4-4 (EFT) 40A (5/50ns)

?Working voltages : 12V

?Protects one bidirectional line

? Low operating and clamping voltages

? Solid-state silicon avalanche technology
